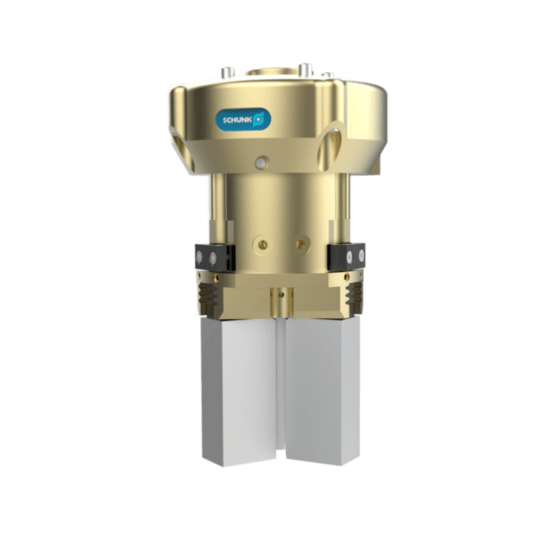

Pneumatic 3-finger centric gripper
$3,181.32 USD
Obsolete
Complete 3-finger centric gripper kit for Universal Robots. Includes the valves, sensors, interface electronics, adapter plates and URCap. This SCHUNK gripper has a high gripping force and maximum moments due to multi-tooth guidance. Ideal to grip cylindric parts. 6mm stroke per jaw. Air inlet: 6mm OD hose.
Maximum gripping force of 580N.
Recommended for use on UR3/UR5/UR10 with payloads of 2.9 kg. In the box: Gripper, 3 aluminum finger blanks, accessories and manuals. Finger blanks must be machined based on your specific application. Compressed air supply required. (no external valves needed).
Quantity:
Technical Drawings
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | PR-SK-001-0058 |
| Weight | 1.22 kg |
| Dimensions (L x W x H) | 174.0 x 124.0 x 124.0 mm |
| Unit Price | $3,181.32 USD |
Compatible Parts
Belt Rack Actuator
MO-LM-042-0000
