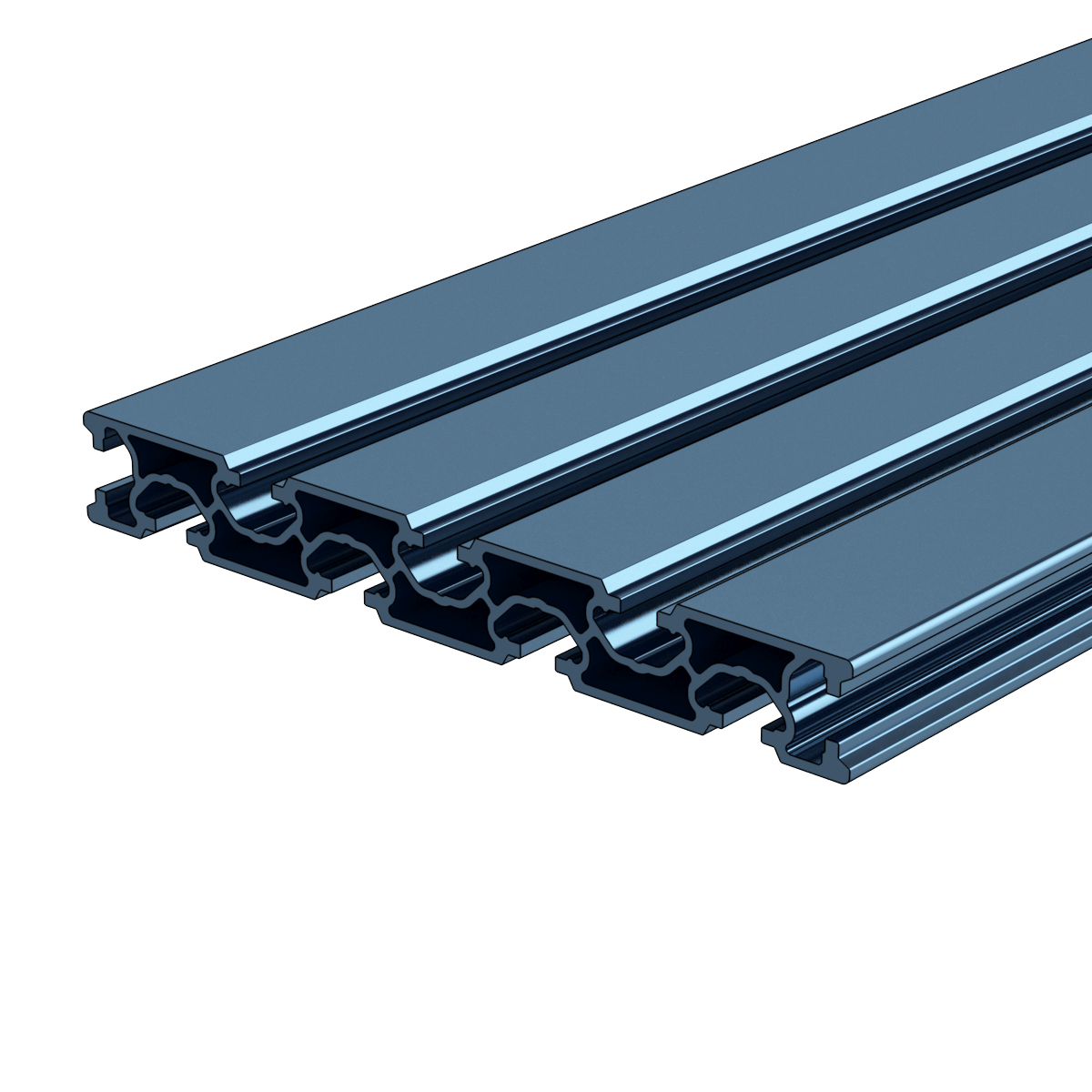

180x22.5mm (450mm) Table Top Extrusion
$36.17 USD
Ships next day
Select dimension:
Length:
x 180.0 mm x 22.5 mm
QTY:
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-EXT-009-0450 |
| Weight | 1.626 kg |
| Dimensions (L x W x H) | 450.0 x 180.0 x 22.5 mm |
| Unit Price | $36.17 USD |
| Material | 6005-T5 |
| Surface finish | Dark Blue Anodization, 6um |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Second Area Moment of Inertia | 77,150 Ix / 3,783,293 Iy mm4 |
| Cross-Sectional Area | 1341 mm2 |
| Torsional Constant | 52,788 mm4 |
| Yield Strength | 240 MPa |
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-EXT-009-0450 |
| Weight | 1.626 kg |
| Dimensions (L x W x H) | 450.0 x 180.0 x 22.5 mm |
| Unit Price | $36.17 USD |
| Material | 6005-T5 |
| Surface finish | Dark Blue Anodization, 6um |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Second Area Moment of Inertia | 77,150 Ix / 3,783,293 Iy mm4 |
| Cross-Sectional Area | 1341 mm2 |
| Torsional Constant | 52,788 mm4 |
| Yield Strength | 240 MPa |
