Part Drawer System

Community design

Used to pick and place raw material or finished CNC parts with drawers that open both sides to allow the robot to open from inside the cell and an operator to open and load/unload parts from outside the cell.

Spec Attribute	Spec Value
Technical Specifications
Numéro de conception	AS-PP-15348
Poids	129.76 kg
Dimensions (L x l x H)	2809 x 1170 x 1048 mm
Application	Assembly
Temps d’assemblage	15:46

Spec Attribute	Spec Value
Documentation
Instructions d’assemblage
Calculateur de ROI
Modèle 3D

Parts	Description	Quantity
Parts		Qty

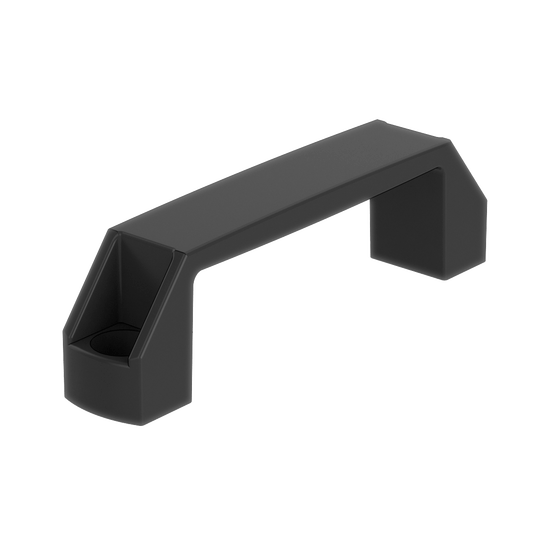

	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	20
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips next day	14
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips next day	4
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips next day	4
	45x90mm (765mm) Aluminum ExtrusionST-EXT-002-0765 - 765 X 45 X 90 mmShips next day	10
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	11
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	10
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	60
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	20
	Floor Anchoring Mount for 45x45mm and 45x90mm ExtrusionsST-SE-001-0003 - 180 X 180 X 94 mmShips next day	4

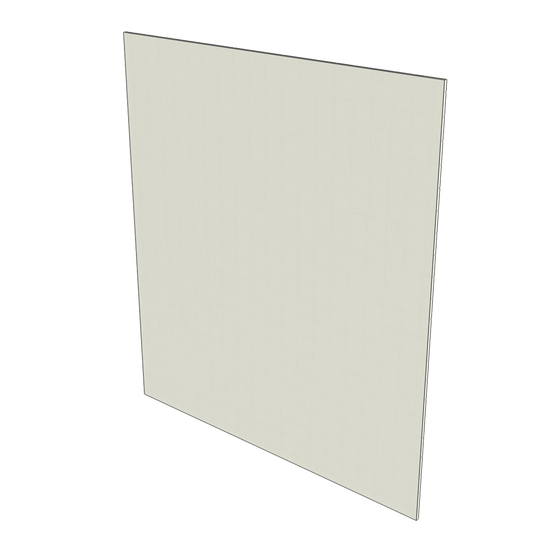

	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.4245 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.4245 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.9051 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	602
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	38
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	565
