UR16e Base for MiR 100/200

Vention official

Universal Robots UR16e base and small frame directly mounted to MiR 100 or MiR200. The UR Controller can be mounted on a bracket in a secure position under the base, and the UR Pendant as well on another bracket at the rear of the frame. Refer to MiR user manuals to ensure CoM is within the specified range for safe operation at different payloads.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-AM-48883
Weight	75.16 kg
Dimensions (L x W x H)	996 x 625 x 1301 mm
Application	Material Handling
Assembly Time	09:26

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	1
	Ergonomic HandleHW-HD-001-0001__2 - 160 X 30 X 60 mmShips next day	4
	M8 x 1.25mm Helicoidal TapHW-TL-001-0001 - 75 X 8 X 8 mmShips next day	1
	M8 Helicoidal Tap HandleHW-TL-003-0001 - 105 X 140 X 30 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	10
	Universal Robots UR16e Collaborative Robot ArmPR-UR-016-0000 - 915 X 760 X 485 mmShips in 3 weeks	1
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	1
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	6
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	4
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	1
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	45x90mm (675mm) Aluminum ExtrusionST-EXT-002-0675 - 675 X 45 X 90 mmShips next day	1
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	8
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	4
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	2
	45mm x 90mm In-Line Mounting Block for Right Angle Connections ST-GP-002-0004 - 90 X 45 X 22 mmShips next day	1
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	8
	UR10e/UR16e and FANUC CRX-10iA Mounting PlateST-RB-001-0008 - 225 X 225 X 22 mmShips next day	1
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1

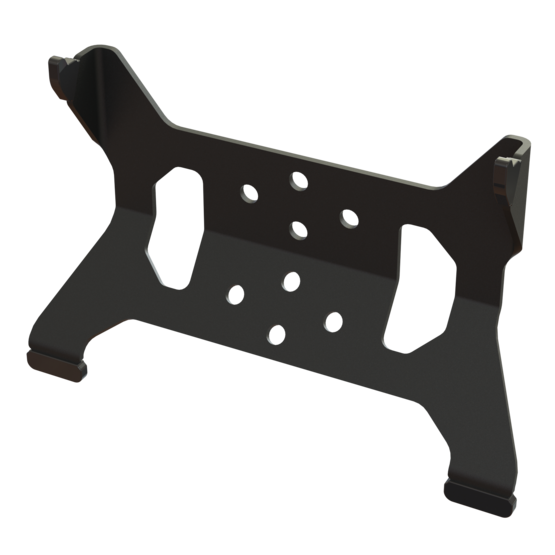

	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	MiR Compatible Aluminum Gusset with Bolts and WasherST-RB-009-0001 - 44 X 42 X 90 mmShips next day	4
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 0.1998 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	180
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	7
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	161
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	9
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	5
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	3
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips next day	5
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	4
	5mm x 250mm Cable Tie (Bag of 25)HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
