UR10 Workcell w/ Workdesk

Community design

Single UR10 robot with two tooling plates. Open access through the front, where there is a removable work area to place your laptop and tools. Open top, paneling on the three remaining sides. Stands for UR Teach Pendant and UR Controller Box.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-7419
Weight	297.44 kg
Dimensions (L x W x H)	2150 x 3230 x 2665 mm
Application	Manufacturing
Assembly Time	13:40

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	12
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 2 days	2
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 2 days	5
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 2 days	2
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips in 2 days	4
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips in 2 days	2
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips in 2 days	2
	45x45mm (1350mm) Aluminum ExtrusionST-EXT-001-1350 - 1350 X 45 X 45 mmShips in 2 days	4
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips in 2 days	7
	45x45mm (1530mm) Aluminum ExtrusionST-EXT-001-1530 - 1530 X 45 X 45 mmShips in 2 days	8
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	2
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	8
	45x90mm (1440mm) Aluminum ExtrusionST-EXT-002-1440 - 1440 X 45 X 90 mmShips next day	6
	45x90mm (1485mm) Aluminum ExtrusionST-EXT-002-1485 - 1485 X 45 X 90 mmShips next day	4
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	2
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	2
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	32
	45 Degree Joint Aluminum Assembly PlateST-GP-001-0012 - 6 X 110 X 153 mmShips next day	4
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	2
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	6
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mmObsolete	12
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	46
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	8
	225x225mm UR10e Mounting plate, for Universal RobotsST-RB-001-0006 - 225 X 225 X 22 mmObsolete	1

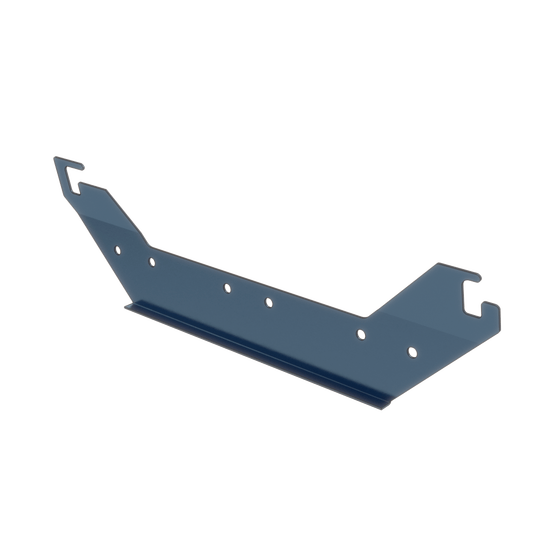

	UR Control Box Mounting BracketST-RB-002-0001 - 12 X 450 X 125 mmObsolete	1

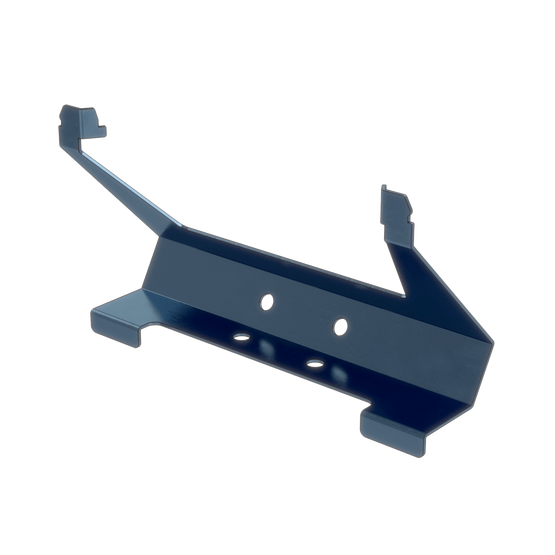

	UR Teach Pendant Mounting BracketST-RB-002-0002 - 65 X 200 X 120 mmObsolete	1
	405x495mm Aluminum Tooling PlateST-SP-002-0002 - 495 X 405 X 22 mmObsolete	2
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.8040 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.8040 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.6718 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.6718 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.8951 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 1.5443 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 1.5645 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 1.5443 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 2.2254 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 2.2254 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	441
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	5
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	417
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	21
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	13
