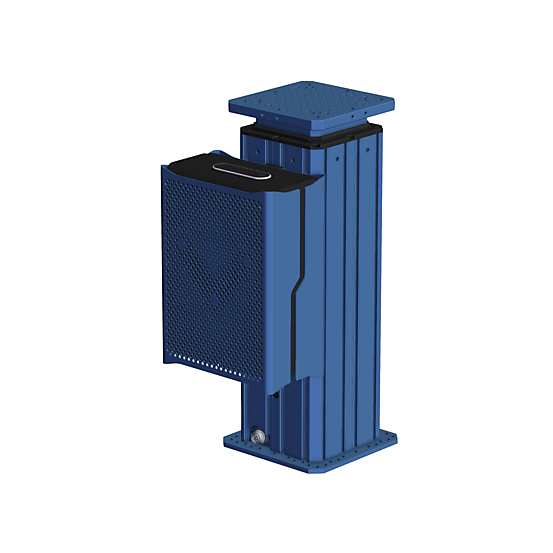

Telescopic Robot Pedestal Compatible with URe series/CRX

Vention official

Vention robotic arm telescopic base compatible with Universal Robots URe series and Fanuc CRX designed with t-slot aluminum extrusions and leveling caster wheels, with center point for the robot base plate at a robot base height ranging from 830mm to 1700mm. Anchoring required based on robot used, loads and application. Please contact our technical team in case of support needed. Robot not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-288108
Weight	78.76 kg
Dimensions (L x W x H)	488 x 337 x 830 mm
Application	Manufacturing
Assembly Time	02:36

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion AICE-CL-030-1500 - 470 X 337 X 206 mmShips in 4 weeks	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25
	Telescopic Lift Column for MMAIMO-LM-050-0830__3 - 315 X 315 X 830 mmComing soon	1
	Cobot Pedestal Wedge Anchors (Bag of 8), 1/2 x 4 1/2 inST-RB-033-0002 - 150 X 20 X 150 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	44
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	41
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	3
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
	5mm x 250mm Cable Tie (Bag of 25)HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
