Smart Assembly + Packing Line | Social-distancing ready

Community design

This mobile Smart Workstation for the Tulip Factory Kit includes a Tulip I/O gateway and Light Kit Shell, enabling pick-to-light, place-to-light, and many more applications. This workstation can provide IoT-enabled interactive visual work instructions.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-WS-79584
Weight	196.77 kg
Dimensions (L x W x H)	3766 x 2122 x 2147 mm
Application	Assembly
Assembly Time	13:56

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M8 Spider KnobHW-CP-002-0001 - 45 X 44 X 44 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	6
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	4
	M8 x 40mm Leveling Foot, with 40mm Diameter BaseHW-LF-001-0001 - 40 X 40 X 82 mmShips next day	4
	Tool HangerHW-OG-001-0001 - 12 X 50 X 34 mmObsolete	2
	45mm Round Nylon Rest PadHW-RP-002-0005 - 43 X 43 X 11 mmShips next day	4
	Blickle Swivel Caster Wheel with Brake, 350kg CapacityMO-WL-002-0004 - 190 X 85 X 155 mmShips next day	4
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips in 2 days	2
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips in 2 days	4
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 2 days	2
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 2 days	12
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 2 days	8
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips in 2 days	4
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips in 2 days	2
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips in 2 days	2
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips in 2 days	7
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips in 2 days	6
	45x45mm (1080mm) Aluminum ExtrusionST-EXT-001-1080 - 1080 X 45 X 45 mmShips in 2 days	1
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips in 2 days	2
	45x45mm (1530mm) Aluminum ExtrusionST-EXT-001-1530 - 1530 X 45 X 45 mmShips in 2 days	7
	45x45mm (1980mm) Aluminum ExtrusionST-EXT-001-1980 - 1980 X 45 X 45 mmShips in 2 days	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	2
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	27
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	30
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mmObsolete	14
	3-Way Extrusion End Connector with Panel CutoutsST-GP-004-0001 - 49 X 49 X 49 mm	2
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	2
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	23
	M8 Countersink Hole for PanelsST-PN-010-0002 - 0 X 0 X 0 mmObsolete	9
	Small Display Mounting Plate, 75mm to 200mm VESAST-SP-011-0001 - 9 X 225 X 225 mmShips next day	1
	DIN Rail 35x7.5mm (225mm)ST-SP-014-0225 - 225 X 35 X 7 mmShips next day	2
	Gas Spring Display Mounting ArmST-SP-015-0001 - 540 X 120 X 300 mmShips next day	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 1.2393 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.5282 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.5273 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.5273 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.5273 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.5282 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2741 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2745 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2587 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2582 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2754 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 1.1654 m²Obsolete	1

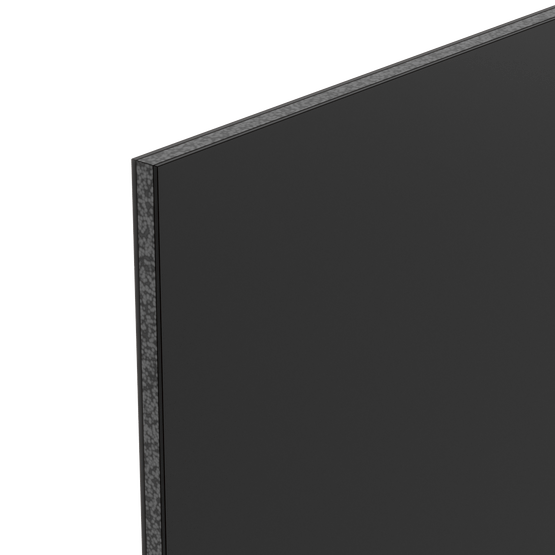

	Foam Core Board, Black 6mmST-PN-006-0002 - 0.1094 m²Obsolete	1
	Foam Core Board, Black 6mmST-PN-006-0002 - 0.1094 m²Obsolete	1
	Foam Core Board, Black 6mmST-PN-006-0002 - 0.3244 m²Obsolete	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.4374 m²Ships in 3 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.8262 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	404
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	3
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	5
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	21
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	356
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	21
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	15
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	3
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	10
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	5
	M6 Washer with 12mm Outside DiameterHW-WS-005-0001 - 1 X 12 X 12 mmShips next day	3
