Small Size 3D Printer

Community design

Small size 3D printer with dimensions of 1395mm X 1280mm X 1395mm height. X axis is 1215mm, Y axis is 1395mm and Z axis is 855mm.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-6701
Weight	152.89 kg
Dimensions (L x W x H)	1558 x 1579 x 2484 mm
Application	Other Equipment
Assembly Time	11:53

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	2
	M8 Inductive Proximity Sensor (Sn = 2 mm)CE-SN-001-0001 - 60 X 8 X 8 mmObsolete	1
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	9
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001 - 12 X 45 X 90 mmObsolete	4
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	4
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	4
	905mm x 16mm OD Ball Screw with Ball Nut and Shaft CollarMO-BS-003-0905 - 905 X 40 X 48 mmObsolete	1
	Aluminum Helical Flexible Shaft CouplingMO-CP-001-0001 - 38 X 38 X 30 mmObsolete	1
	Small Gantry PlateMO-LM-001-0001 - 165 X 115 X 12 mmObsolete	4
	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmObsolete	2

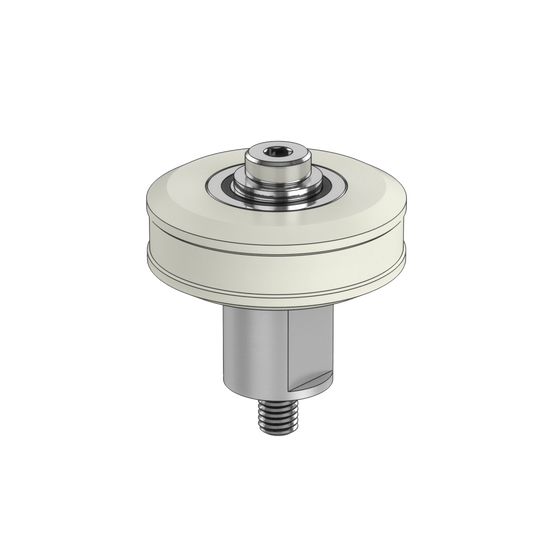

	Large Acetal Roller Wheel with Eccentric BushingMO-LM-001-0019 - 44 X 0 X 51 mmObsolete	16

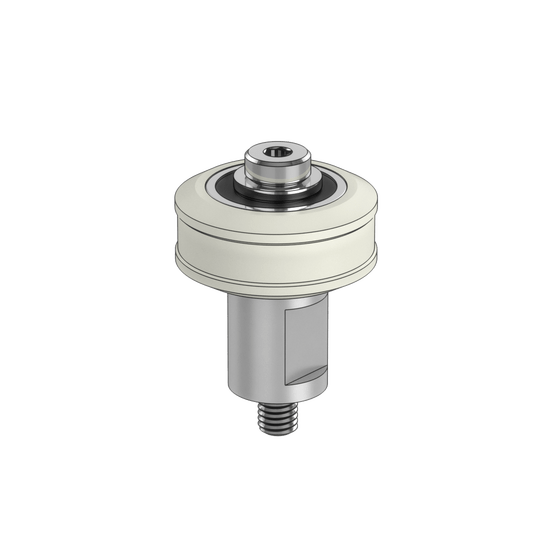

	Small Acetal Roller Wheel with Eccentric BushingMO-LM-001-0021 - 44 X 0 X 40 mmObsolete	8
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmObsolete	1
	Mounting Plate for Stepper MotorMO-LM-002-0002 - 22 X 225 X 90 mmObsolete	1
	Support Plate for Ball ScrewMO-LM-002-0009 - 22 X 225 X 90 mmObsolete	2
	Heavy-Duty 1215mm Belt-driven Linear ActuatorMO-LM-007-1215 - 1395 X 68 X 113 mmObsolete	1
	Heavy-Duty 1395mm Belt-driven Linear ActuatorMO-LM-007-1395 - 1575 X 68 X 113 mmObsolete	2
	100mm NEMA 34 Stepper MotorMO-SM-002-0001 - 168 X 86 X 86 mmObsolete	4
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 4 days	2
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips in 4 days	2
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips in 4 days	3
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips in 4 days	1
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 4 days	1
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 4 days	1
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips in 4 days	1
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	2
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	2
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	1
	45x90mm (360mm) Aluminum ExtrusionST-EXT-002-0360 - 360 X 45 X 90 mmShips next day	2
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	2
	45x90mm (1035mm) Aluminum ExtrusionST-EXT-002-1035 - 1035 X 45 X 90 mmShips next day	5
	45x90mm (1170mm) Aluminum ExtrusionST-EXT-002-1170 - 1170 X 45 X 90 mmShips next day	5
	45x90mm (1395mm) Aluminum ExtrusionST-EXT-002-1395 - 1395 X 45 X 90 mmShips next day	4
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	6
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	1
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	12
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	12
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	22
	135x100mm Aluminum Mounting PlateST-SP-001-0002 - 11 X 135 X 100 mmShips next day	2
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 1.5325 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	333
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	308
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	30
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	38
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 20 X 0 X 0 mmShips next day	5
