Small Milling Machine - CNC Configuration

Vention official

Small milling machine made with Vention Enclosed Ball screw Actuators in XYZ, with all actuators mounted above the work surface with a longer plunging Z. Includes MachineMotion V2 Controller, sensors, pendant, motors, router spindle kit, and cabling. Software for path following not included.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-PF-169380
Weight	313.74 kg
Dimensions (L x W x H)	1850 x 1932 x 1859 mm
Application	Manufacturing
Assembly Time	33:01

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Motor Cable Extension MachineMotion AI - 5mCE-CA-402-0500 - 300 X 300 X 60 mmShips in 4 weeks	3
	MachineMotion AICE-CL-030-1500 - 470 X 337 X 206 mmShips in 4 weeks	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips in 2 days	2
	Digital I/O Module v2CE-MD-001-0000__2 - 150 X 88 X 60 mmShips in 3 weeks	1
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	4
	High Strength Threadlocker (10 ml)HW-CS-001-0003 - 29 X 29 X 91 mmShips next day	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	7
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	8
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	4
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25
	41mm Wide Cable Drag Chain (876mm)MO-DC-041-0876 - 876 X 41 X 35 mmShips in 2 days	1
	41mm Wide Cable Drag Chain (1244mm)MO-DC-041-1244 - 1244 X 41 X 35 mmShips in 2 days	1
	73mm Wide Cable Drag Chain (1612mm)MO-DC-073-1612 - 1612 X 73 X 35 mmShips in 2 days	1
	Self Aligning Mount, FollowerMO-LM-031-0001 - 178 X 88 X 45 mmShips next day	2
	Self Aligning Mount, LeaderMO-LM-031-0002 - 178 X 88 X 45 mmShips in 3 days	2
	Enclosed Ball Screw Actuator, 585mm LengthMO-LM-039-0585 - 727 X 270 X 112 mmShips in 5 days	1
	Enclosed Ball Screw Actuator, 1530mm LengthMO-LM-039-1530 - 1672 X 270 X 112 mmShips next day	3
	MachineMotion AI Power-Off BrakeMO-PT-006-0001 - 100 X 85 X 85 mmShips in 4 weeks	1
	0.7 kW Router with Mounting ClampMO-SM-020-0001 - 200 X 120 X 100 mmShips in 11 days	1

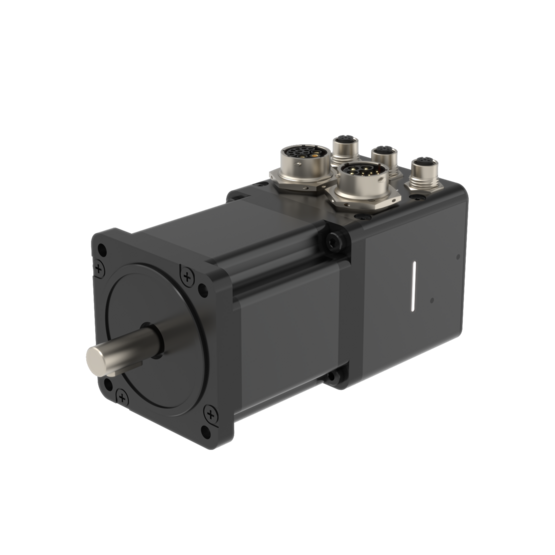

	MachineMotion AI NEMA 34 Stepper Servo Motor - 100mmMO-SM-030-0002 - 303 X 86 X 103 mmShips in 4 weeks	4
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 7 days	2
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 7 days	3
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips in 7 days	2
	45x45mm (1350mm) Aluminum ExtrusionST-EXT-001-1350 - 1350 X 45 X 45 mmShips in 7 days	1
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	2
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	4
	45x90mm (270mm) Aluminum ExtrusionST-EXT-002-0270 - 270 X 45 X 90 mmShips next day	12
	45x90mm (1170mm) Aluminum ExtrusionST-EXT-002-1170 - 1170 X 45 X 90 mmShips next day	1
	45x90mm (1215mm) Aluminum ExtrusionST-EXT-002-1215 - 1215 X 45 X 90 mmShips next day	3
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	2
	90x90mm (765mm) Aluminum ExtrusionST-EXT-005-0765 - 765 X 90 X 90 mmShips next day	4
	90x90mm (1215mm) Aluminum ExtrusionST-EXT-005-1215 - 1215 X 90 X 90 mmShips next day	4
	90x90mm (1350mm) Aluminum ExtrusionST-EXT-005-1350 - 1350 X 90 X 90 mmShips next day	4
	90x90mm (1530mm) Aluminum ExtrusionST-EXT-005-1530 - 1530 X 90 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	4
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	1
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	24
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips in 4 days	1
	45mm x 90mm In-Line Mounting Block for Right Angle Connections ST-GP-002-0004 - 90 X 45 X 22 mmShips next day	2
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 16 days	6
	Actuator Mounting PlateST-GP-005-0010 - 223 X 223 X 11 mmShips next day	4
	Gusset Plate for 45 Degree Cobot MountingST-GP-005-0012 - 217 X 11 X 217 mmShips next day	4
	67.5 mm Actuator Clamping ConnectorST-GP-005-0015 - 67 X 50 X 22 mmShips next day	8
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	131
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	28
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	1046
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	9
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	1027
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	36
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	3
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	28
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	5
	M6 1.0 x 12mm Flat Head ScrewHW-FN-005-4012 - 12 X 12 X 12 mmShips next day	13
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	13
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	34
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips in 3 weeks	1
	MachineMotion Pendant V3CE-TP-014-0000 - 332 X 68 X 246 mmShips in 3 weeks	1
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	6
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	2
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	6
	Vention Pendant V3 Machine MountST-RB-002-0005 - 143 X 178 X 128 mmShips next day	1
