RW Doors - Adjustable Conveyor Solution (No controls)

Community design

Changed gussets and added clamping rail. Rail will need a few more supports to be added in. Please add the extra rail support and adjust as required. I am not good with your software; thus, cannot added the required parts.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-291560
Weight	567.01 kg
Dimensions (L x W x H)	1326 x 9185 x 504 mm
Application	Material Handling
Assembly Time	29:40

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips in 2 days	1
	M18 NPN Diffuse Photo-Electric Sensor (Sn = 300mm)CE-SN-007-0001__2 - 110 X 110 X 30 mmObsolete	1
	High Performance Synthetic GreaseHW-CS-002-0001 - 60 X 35 X 160 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	20
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	5
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	Compact Grease Gun for Grease TubeHW-TL-005-0001 - 160 X 30 X 30 mmObsolete	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	50
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	8
	71mm Wide Cable Drag Chain (782mm)MO-DC-002-0765 - 879 X 74 X 35 mmShips next day	1
	Enclosed Timing Belt Actuator, 585mm LengthMO-LM-026-0585__2 - 830 X 180 X 112 mmShips next day	4
	Planetary Reduction Gearbox, 5:1MO-PT-001-0001 - 130 X 86 X 86 mmShips next day	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	2
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 7 days	1
	45x45mm (1125mm) Aluminum ExtrusionST-EXT-001-1125 - 1125 X 45 X 45 mmShips in 7 days	1
	45x45mm (1890mm) Aluminum ExtrusionST-EXT-001-1890 - 1890 X 45 X 45 mmShips in 7 days	6
	45x45mm (2070mm) Aluminum ExtrusionST-EXT-001-2070 - 2070 X 45 X 45 mmShips in 7 days	1
	45x45mm (2115mm) Aluminum ExtrusionST-EXT-001-2115 - 2115 X 45 X 45 mmShips in 7 days	1
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	8
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	18
	45x90mm (495mm) Aluminum ExtrusionST-EXT-002-0495 - 495 X 45 X 90 mmShips next day	1
	90x90mm (225mm) Aluminum ExtrusionST-EXT-005-0225 - 225 X 90 X 90 mmShips next day	5
	90x90mm (315mm) Aluminum ExtrusionST-EXT-005-0315 - 315 X 90 X 90 mmShips next day	4
	90x90mm (360mm) Aluminum ExtrusionST-EXT-005-0360 - 360 X 90 X 90 mmShips next day	9
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	51
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	1
	2X2 Hole Aluminum Assembly Plate, For 22.5mm to 45mm ExtrusionsST-GP-001-0022 - 6 X 65 X 6 mmShips next day	2
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 17 days	36
	90mm x 90mm Aluminum GussetST-GP-003-0004 - 88 X 88 X 88 mmShips next day	1
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	158
	Flexible Conveyor Guide StripST-PN-020-2295 - 2293 X 43 X 9 mmShips next day	8
	MO-AR-007-0050__1_0IMP-622723_634924 - 253 X 178 X 91 mmShips next day	1
	DFMSolutions-202308227733779_1IMP-625552_637753 - 280 X 8242 X 278 mmShips next day	1
	DFMSolutions-202308227733779_2IMP-625557_637758 - 280 X 8242 X 278 mmShips next day	1
	8x CUSTOM EXTRUSION CUTS, ST-EXT-002-0090 INTO 54IMP-625569_637770 - 204 X 204 X 204 mmShips next day	1
	d10664031IMP-625998_638199 - 610 X 8237 X 304 mmShips next day	1
	8x CUSTOM EXTRUSION CUTS, ST-EXT-005-0360 INTO 320IMP-626840_639041 - 204 X 204 X 204 mmShips next day	1
	5x CUSTOM EXTRUSION CUTS, ST-EXT-005-0315 INTO 280IMP-626841_639042 - 204 X 204 X 204 mmShips next day	1
	5x CUSTOM EXTRUSION CUTS, ST-EXT-005-0225 INTO 205IMP-626842_639043 - 204 X 204 X 204 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	888
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	108
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	5
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	7
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	17
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	840
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	27
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	2
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	51

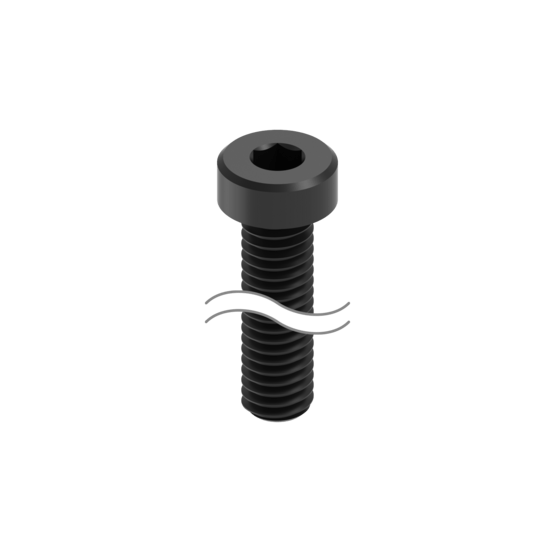

	M6 x 1.0 x 18 mm, Low Profile Socket HeadHW-FN-005-0018 - 22 X 10 X 10 mmShips next day	66
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	99
	M5-0.8 x 8mm Ball Point Set ScrewHW-FN-022-1008 - 5 X 5 X 8 mmShips next day	17
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	42
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	17
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	10
	Butt-Joint Extrusion ConnectorHW-FN-002-0005 - 148 X 13 X 7 mmShips next day	16
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	2
	M8 x 35mm ScrewHW-FN-003-0035 - 40 X 13 X 13 mmShips next day	24
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	100
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	3
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	48
