Rolling cart for Universal Robots UR5

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-18097
Weight	65.36 kg
Dimensions (L x W x H)	658 x 1159 x 1009 mm
Application	Manufacturing
Assembly Time	11:39

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	4
	M8 Spider KnobHW-CP-002-0001 - 45 X 44 X 44 mmObsolete	2
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	6
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	4
	Spring-Loaded Grab LatchHW-LT-001-0001 - 75 X 74 X 15 mmObsolete	2
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	4
	45x45mm Hinge, 8mm PinMO-HG-001-0001 - 27 X 80 X 40 mmShips next day	4

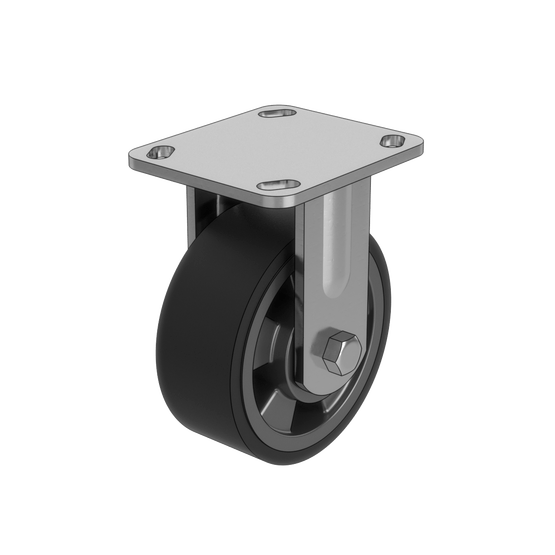

	Fixed Caster Wheel, 260kg CapacityMO-WL-002-0001 - 115 X 100 X 164 mmObsolete	2
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	4
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	6
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	8
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	14
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	3
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips next day	2
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	2
	45x90mm (270mm) Aluminum ExtrusionST-EXT-002-0270 - 270 X 45 X 90 mmShips next day	6
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	10
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	24
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	2
	45 Degree Joint Aluminum Assembly PlateST-GP-001-0012 - 6 X 110 X 153 mmShips next day	4
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips next day	8
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	16
	225x225mm UR5 Mounting plate, for Universal RobotsST-RB-001-0003 - 225 X 225 X 22 mmObsolete	1
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mmObsolete	2
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1156 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0803 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1851 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1088 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0275 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1088 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0275 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.2898 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0425 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1088 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1020 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0275 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1088 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.1020 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.0275 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	357
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	353
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M8 X1.25 Zinc Plated Thin Hex NutHW-FN-033-0002 - 13 X 13 X 4 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	9
