Robotic Desk

Community design

A desk that holds robotic stuff. Such as arms, tools, control panel, and UR e Series Teach Pendant mountings. There is also space up on the top layer, in the middle layer, and on the bottom layer.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-54211
Weight	64.41 kg
Dimensions (L x W x H)	976 x 1706 x 952 mm
Application	Other Equipment
Assembly Time	02:56

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	2
	Blickle Fixed Caster Wheel, 200kg CapacityMO-WL-001-0003 - 100 X 85 X 125 mmShips next day	4
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips in 4 days	3
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 4 days	1
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips in 4 days	3
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips in 4 days	1
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips in 4 days	2
	45x45mm (1485mm) Aluminum ExtrusionST-EXT-001-1485 - 1485 X 45 X 45 mmShips in 4 days	4
	45x45mm (1530mm) Aluminum ExtrusionST-EXT-001-1530 - 1530 X 45 X 45 mmShips in 4 days	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	10
	Cobot Tooling Mounting PlateST-RB-001-0001__2 - 67 X 112 X 15 mmShips next day	1
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	UR Teach Pendant Mounting BracketST-RB-002-0002__2 - 34 X 201 X 158 mmObsolete	1

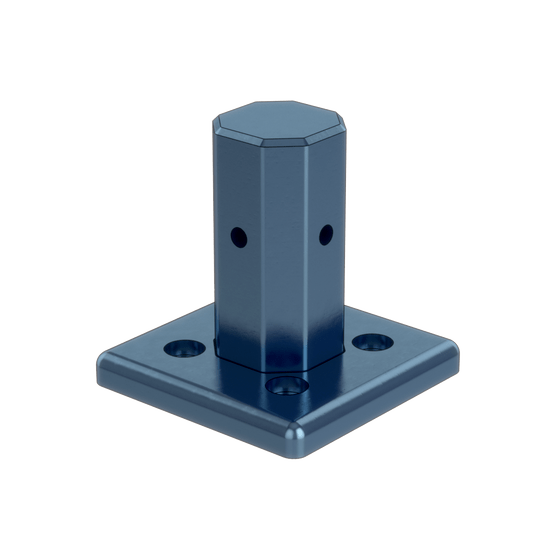

	Mounting Fixture for Kinova Robot ArmsST-RB-005-0003 - 90 X 90 X 91 mmShips next day	2
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 1.2671 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 1.2679 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 1.2677 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	83
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	21
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	60
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	2
