Path Following 3 Axis Machine for CNC / Router

Community design

3 Axis gantry system for CNC/Router with net travels of 585mm x 1.2m x 315mm. All of the 3 axis use Enclosed Heavy Duty Timing Belt linear actuators. Includes a Path Following software and a MachineMotion Pendant providing you with an easy way to program your unit, as well as a Pneumatic Spindle by Air Turbine Tools and 5 Pivoting Edge Clamps by Carr Lane Manufacturing Co.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-95374
Weight	307.60 kg
Dimensions (L x W x H)	2035 x 1843 x 1260 mm
Application	Other Equipment
Assembly Time	26:20

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Pneumatic Air Preparation StationCA-AP-001-0001 - 72 X 125 X 201 mmObsolete	1
	On/Off Pneumatic Valve, Normally ClosedCE-AR-002-0000 - 157 X 115 X 38 mmObsolete	1
	Extension Cable for Stepper Motors, 5mCE-CA-020-5000 - 186 X 176 X 53 mmShips next day	2
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips in 2 days	2
	Digital IO ModuleCE-MD-001-0001 - 180 X 110 X 26 mmObsolete	1
	Hollow Shaft Optical Rotary EncoderCE-SN-002-0001__2 - 50 X 60 X 83 mmObsolete	3
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	3
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	4
	MachineApps - Path FollowingCE-SW-002-0002 - 40 X 10 X 5 mmObsolete	1
	MachineMotion 1 PendantCE-TP-003-0001 - 320 X 200 X 73 mmObsolete	1
	Aluminum Tapping FluidHW-CS-004-0001 - 35 X 55 X 122 mmShips next day	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	9
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	7

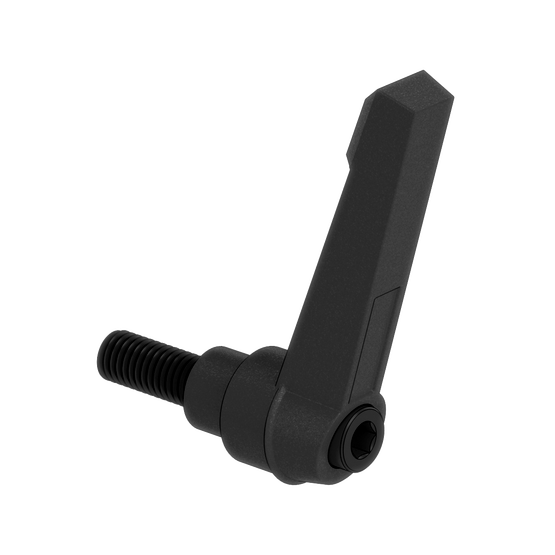

	M8 Ratchet Handle 20mmHW-HD-003-0020 - 72 X 19 X 65 mmObsolete	4
	Air Turbine Motor 725MX ClampHW-PR-001-0001 - 90 X 48 X 45 mmObsolete	1
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	12
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	10
	M8 x 1.25mm Helicoidal TapHW-TL-001-0001 - 75 X 8 X 8 mmShips next day	1
	M8 Helicoidal Tap HandleHW-TL-003-0001 - 105 X 140 X 30 mmShips next day	1
	Compact Grease Gun for Grease TubeHW-TL-005-0001 - 160 X 30 X 30 mmObsolete	1
	V1 Extrusion Tap Guide Tool HW-TL-008-0001 - 45 X 45 X 34 mmObsolete	1
	Tap Cleaning BrushHW-TL-009-0001 - 7 X 7 X 140 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	25
	71mm Wide Cable Drag Chain (1150mm)MO-DC-002-1125 - 1239 X 74 X 35 mmShips next day	2

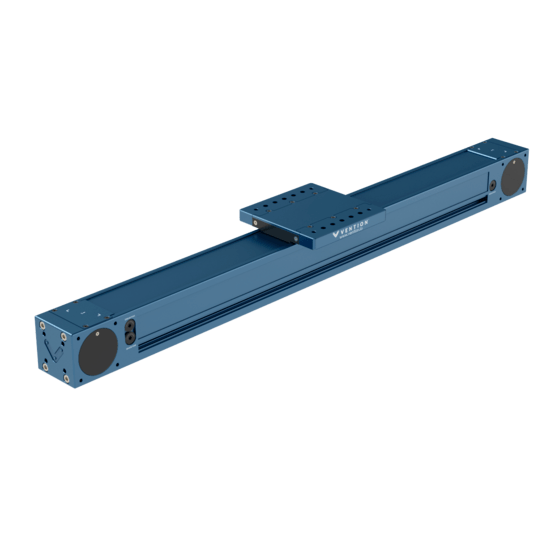

	Enclosed Timing Belt Actuator, 1530mm LengthMO-LM-026-1530 - 1775 X 180 X 112 mmObsolete	2
	Heavy Duty Enclosed Timing Belt Actuator, 585mm LengthMO-LM-027-0585 - 832 X 270 X 112 mmObsolete	1
	Heavy Duty Enclosed Timing Belt Actuator, 855mm LengthMO-LM-027-0855 - 1102 X 270 X 112 mmObsolete	1
	Planetary Reduction Gearbox, 5:1MO-PT-001-0001 - 130 X 86 X 86 mmShips next day	4
	Power-Off BrakeMO-PT-002-0001 - 100 X 85 X 85 mmShips next day	1
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	4
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	2
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	1
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	2
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	8
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips next day	2
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	5
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	1
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	2
	45x90mm (1440mm) Aluminum ExtrusionST-EXT-002-1440 - 1440 X 45 X 90 mmShips next day	2
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	6
	90x90mm (630mm) Aluminum ExtrusionST-EXT-005-0630 - 630 X 90 X 90 mmShips next day	4
	90x90mm (1440mm) Aluminum ExtrusionST-EXT-005-1440 - 1440 X 90 X 90 mmShips next day	2
	90x90mm (1530mm) Aluminum ExtrusionST-EXT-005-1530 - 1530 X 90 X 90 mmShips next day	3
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	6
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	14
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	2
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	12
	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	5
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 17 days	28
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	3
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	30
	45 Degree Inline Connector with LocatorsST-HP-003-0003 - 45 X 45 X 53 mm	16
	90mm x 90mm Aluminum Gusset With LocatorsST-HP-003-0004 - 88 X 88 X 88 mmShips next day	14
	45mm x 90mm Aluminum Gusset with LocatorsST-HP-003-0005 - 89 X 42 X 44 mmShips next day	4
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	270x225mm Aluminum Tooling PlateST-SP-002-0003 - 270 X 225 X 11 mmShips next day	6
	45x90mm Accessory Mounting PlateST-SP-012-0001 - 12 X 88 X 43 mmShips next day	4
	Single Stage X LocatorST-SP-013-0001 - 90 X 45 X 22 mmShips next day	3
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	878
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	7
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	5
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	7
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	787
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	77
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	3
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	3
	5mm x 250mm Cable Tie (bag of 25) HW-TW-002-0001 - 250 X 5 X 4 mmShips next day	1
