Onsite Demo Cart

Community design

This UR5 Demo Cart features Vention's heavy-duty hinges allowing the UR5 to be stored and packed inside the cart when not in use. This designs also allows for easy transportation and manipulation using Vention's swivelling casters and wide-grip handles.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-RB-41342
Weight	66.71 kg
Dimensions (L x W x H)	918 x 1853 x 1749 mm
Application	Manufacturing
Assembly Time	07:01

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	2
	Spring-Loaded Grab LatchHW-LT-001-0001 - 75 X 74 X 15 mmObsolete	2
	45x45mm Hinge, 8mm PinMO-HG-001-0001 - 27 X 80 X 40 mmShips next day	6
	Blickle Swivel Caster Wheel with Brake, 150kg CapacityMO-WL-001-0004 - 160 X 85 X 125 mmShips next day	4
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 4 days	13
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips in 4 days	7
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips in 4 days	1
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips in 4 days	5
	45x45mm (1530mm) Aluminum ExtrusionST-EXT-001-1530 - 1530 X 45 X 45 mmShips in 4 days	1
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	1
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	1
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	1
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	22
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	7
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips in 2 days	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	4
	Multi-Robot Mounting Plate 180 X 180 mmST-RB-001-0007 - 178 X 178 X 11 mmObsolete	1
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	270x405mm Machinable Blank Plate MachinableST-SP-008-0002 - 405 X 270 X 8 mmObsolete	4

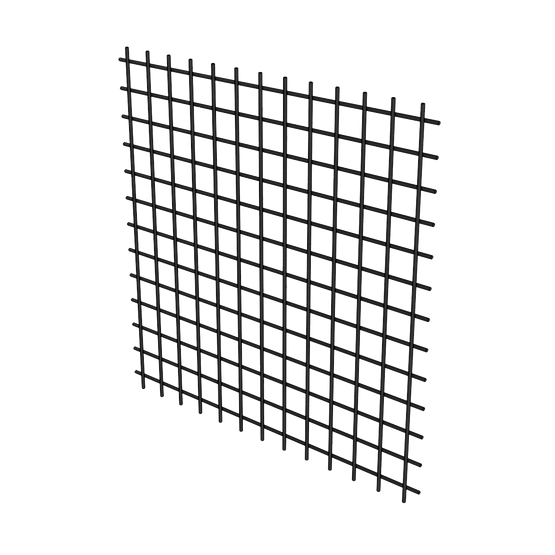

	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3077 m²Obsolete	1
	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3077 m²Obsolete	1
	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.2969 m²Obsolete	1
	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3534 m²Obsolete	1
	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3783 m²Obsolete	1
	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3783 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	228
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	24
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	185
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	21
