Industrial 3D printer

Community design

Create parts up to 800 x 800 x 500 mm with this rugged, industrial-grade 3D printer. All 3-axis are belt driven with rollers for fast, yet precise and repeatable motion. Its program can be fully customized via Vention's MachineMotion. (Extruder not included)

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-47911
Weight	123.86 kg
Dimensions (L x W x H)	1404 x 1360 x 1534 mm
Application	Other Equipment
Assembly Time	09:36

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips in 2 days	1
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	6
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	2
	22.5x22.5mm Plastic End Cap, for ExtrusionsHW-EC-006-0001 - 10 X 22 X 22 mmShips next day	8
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	4
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	9
	41mm Wide Cable Drag Chain (1150mm)MO-DC-001-1125 - 1239 X 45 X 35 mmShips next day	1
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips in 8 days	16
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips in 8 days	16
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	8
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	3
	Right Timing Belt Sensor BumperMO-LM-015-0002__2 - 102 X 19 X 30 mmShips next day	2

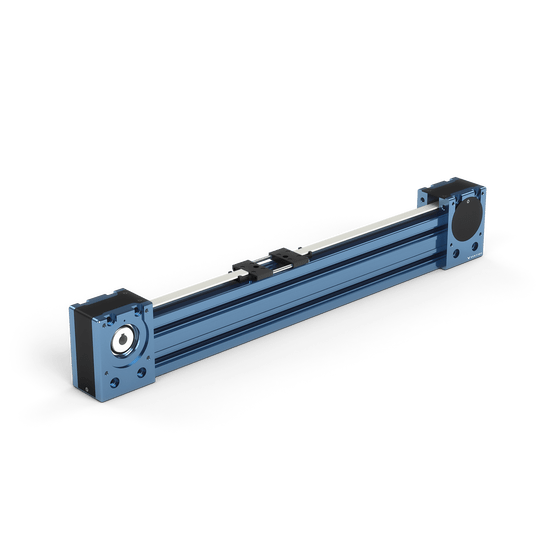

	Timing Belt Actuator (855mm)MO-LM-016-0855 - 1035 X 67 X 120 mmObsolete	2
	Timing Belt Actuator (1170mm)MO-LM-016-1170 - 1350 X 67 X 120 mmObsolete	3
	65mm NEMA 34 Stepper MotorMO-SM-003-0001 - 133 X 86 X 86 mmObsolete	5
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	2
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips next day	3
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips next day	1
	45x45mm (1080mm) Aluminum ExtrusionST-EXT-001-1080 - 1080 X 45 X 45 mmShips next day	3
	45x45mm (1170mm) Aluminum ExtrusionST-EXT-001-1170 - 1170 X 45 X 45 mmShips next day	1
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	2
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	4
	45x90mm (945mm) Aluminum ExtrusionST-EXT-002-0945 - 945 X 45 X 90 mmShips next day	4
	22.5x22.5mm (90mm) Aluminum ExtrusionST-EXT-006-0090 - 90 X 22 X 22 mmShips next day	1
	22.5x22.5mm (135mm) Aluminum ExtrusionST-EXT-006-0135 - 135 X 22 X 22 mmShips next day	6
	22.5x22.5mm (270mm) Aluminum ExtrusionST-EXT-006-0270 - 270 X 22 X 22 mmShips next day	1
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	2
	30 Degree Joint Aluminum Assembly PlateST-GP-001-0017 - 6 X 136 X 110 mmShips next day	2
	60 Degree Joint Aluminum Assembly PlateST-GP-001-0018 - 6 X 160 X 111 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 22.5 x 22.5 ExtrusionsST-GP-001-0021 - 6 X 66 X 66 mmShips next day	6
	11.25mm Spacer for 22.5x22.5mm Aluminum Extrusion with set screwsST-GP-002-0002__2 - 44 X 22 X 39 mmShips in 2 days	2
	22.5mm x 45mm Aluminum GussetST-GP-003-0002 - 21 X 22 X 44 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	38
	M8 Countersink Hole for PanelsST-PN-010-0002 - 0 X 0 X 0 mmObsolete	14
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.9548 m²Obsolete	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.2562 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	217
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	5
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	45
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	11
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	189
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	2
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	2
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	15
