Industrial 3D printer 1m x 1m x 1m

Community design

Create parts up to 1000 x 1000 x 1000 mm with this rugged, industrial-grade 3D printer. All 3-axis are belt driven for fast, yet precise and repeatable motion. Its program can be fully customized via Vention's MachineMotion.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-12571
Weight	105.67 kg
Dimensions (L x W x H)	1474 x 1509 x 1902 mm
Application	Other Equipment
Assembly Time	05:51

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1

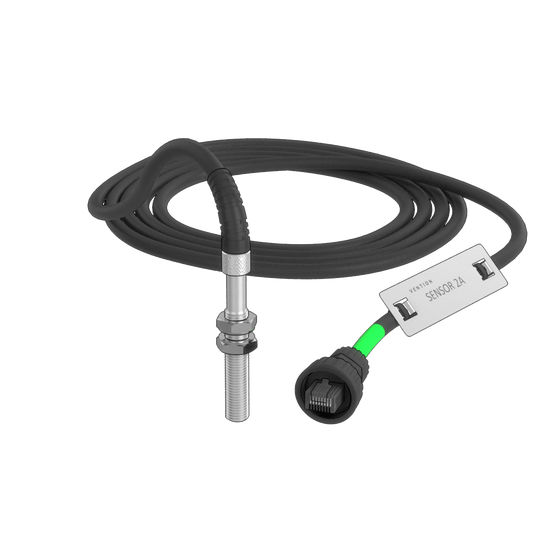

	M8 Inductive Proximity Sensor (Sn = 2 mm)CE-SN-001-0001 - 60 X 8 X 8 mmObsolete	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001 - 12 X 45 X 90 mmObsolete	6
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	4
	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmObsolete	5
	Large Stainless Steel Roller Wheel with Eccentric BushingMO-LM-001-0014 - 43 X 0 X 51 mmObsolete	8
	Large Stainless Steel Roller Wheel with Concentric BushingMO-LM-001-0015 - 43 X 0 X 51 mmObsolete	12
	1035mm Belt-driven Linear ActuatorMO-LM-006-1035 - 1215 X 68 X 90 mmObsolete	2
	1170mm Belt-driven Linear ActuatorMO-LM-006-1170 - 1350 X 68 X 90 mmObsolete	2

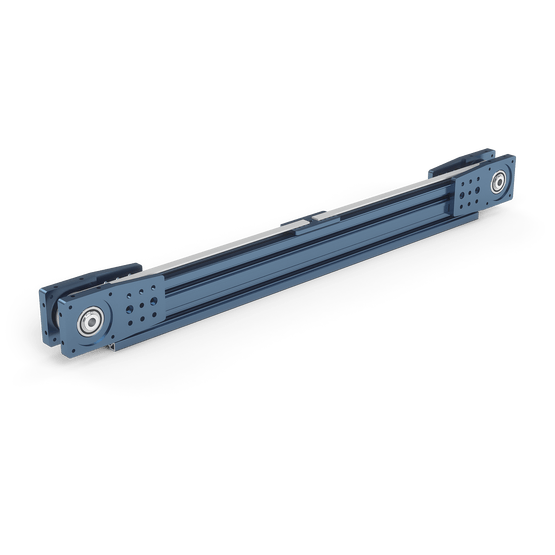

	Heavy-Duty 1215mm Belt-driven Linear ActuatorMO-LM-007-1215 - 1395 X 68 X 113 mmObsolete	1
	65mm NEMA 34 Stepper MotorMO-SM-003-0001 - 133 X 86 X 86 mmObsolete	5
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 4 days	4
	45x45mm (1125mm) Aluminum ExtrusionST-EXT-001-1125 - 1125 X 45 X 45 mmShips in 4 days	1
	45x45mm (1260mm) Aluminum ExtrusionST-EXT-001-1260 - 1260 X 45 X 45 mmShips in 4 days	2
	45x45mm (1305mm) Aluminum ExtrusionST-EXT-001-1305 - 1305 X 45 X 45 mmShips in 4 days	3
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	2
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	1
	45x90mm (1395mm) Aluminum ExtrusionST-EXT-002-1395 - 1395 X 45 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	4
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 13 days	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	16
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 1.5066 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	128
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	108
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	21
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	21
