Heavy-Duty UR Stand

Community design

Stand-mounted with floor anchor for Universal Robot UR3e, UR5e, and UR10e. The base height is 645 mm. Vention is certified by Universal Robots.

Parts	Description	Quantity
Parts		Qty
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips next day	4
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	4
	45x90mm (270mm) Aluminum ExtrusionST-EXT-002-0270 - 270 X 45 X 90 mmShips next day	3
	90x90mm (585mm) Aluminum ExtrusionST-EXT-005-0585 - 585 X 90 X 90 mmShips next day	4
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	4

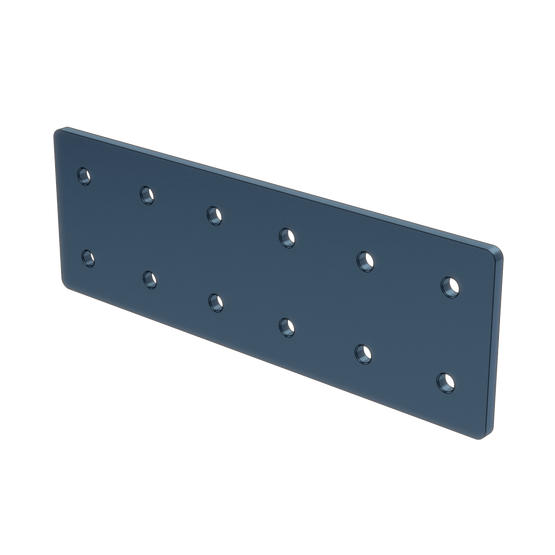

	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	8
	Multi-Robot Mounting Plate 180 X 180 mmST-RB-001-0007 - 178 X 178 X 11 mmObsolete	1
	Floor Anchoring Mount for 90x90mm and 45x90mm ExtrusionsST-SE-001-0004__2 - 180 X 180 X 94 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	141
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	51
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	91
