EDM Wire Cutter Load/Unload Robot System

Community design

Designed for a Collaborative Robot, panels are in place to prevent robot from potential head injuries during performing movements. an indicator light for each product location and an overall cell status light. 4 adjustable levelers are on the back of the system to adjust and bolt robot cell to machine. PLC is used to display certain information on part count, cycle time and so on.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-121018
Weight	213.09 kg
Dimensions (L x W x H)	1648 x 1407 x 2049 mm
Application	Assembly
Assembly Time	18:28

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Tower LightCE-LI-001-0000 - 39 X 55 X 353 mmObsolete	1
	Industrial LED BarCE-LI-002-0000 - 298 X 32 X 46 mmShips next day	1
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	3
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	1
	M14 x 66mm Leveling Foot, with 120mm Diameter BaseHW-LF-002-0000 - 120 X 120 X 100 mmShips next day	4
	Blickle Swivel Leveling Caster Wheel with Fixed Pedal, 200kg CapacityMO-WL-003-0001 - 175 X 85 X 118 mmShips next day	4
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 7 days	2
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips in 7 days	3
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips in 7 days	8
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 7 days	2
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips in 7 days	1
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips in 7 days	1
	45x45mm (855mm) Aluminum ExtrusionST-EXT-001-0855 - 855 X 45 X 45 mmShips in 7 days	6
	45x45mm (1215mm) Aluminum ExtrusionST-EXT-001-1215 - 1215 X 45 X 45 mmShips in 7 days	3
	45x45mm (1350mm) Aluminum ExtrusionST-EXT-001-1350 - 1350 X 45 X 45 mmShips in 7 days	2
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	1
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	1
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	1
	45x90mm (630mm) Aluminum ExtrusionST-EXT-002-0630 - 630 X 45 X 90 mmShips next day	1
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	1
	45x90mm (810mm) Aluminum ExtrusionST-EXT-002-0810 - 810 X 45 X 90 mmShips next day	1
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	5
	45x90mm (1215mm) Aluminum ExtrusionST-EXT-002-1215 - 1215 X 45 X 90 mmShips next day	9
	45x90mm (1485mm) Aluminum ExtrusionST-EXT-002-1485 - 1485 X 45 X 90 mmShips next day	1
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	3
	90x90mm (135mm) Aluminum ExtrusionST-EXT-005-0135 - 135 X 90 X 90 mmShips next day	1
	3x3 Hole Aluminum Assembly PlateST-GP-001-0001 - 133 X 133 X 6 mmShips next day	1
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	3
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	5
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	8
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	26
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	1
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	8
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	8
	2X6 Hole Aluminum Assembly PlateST-GP-001-0014 - 6 X 268 X 88 mmShips next day	4
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	2
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips in 4 days	4
	1x5 Hole Aluminum Assembly PlateST-GP-001-0020 - 223 X 43 X 6 mmShips next day	3
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips in 16 days	31
	90mm x 90mm Aluminum GussetST-GP-003-0004 - 88 X 88 X 88 mmShips next day	1
	45mm x 90mm Aluminum GussetST-GP-003-0005 - 42 X 44 X 89 mmShips next day	20
	M8 Thru Hole for 1/8 inch and Thinner PanelsST-PN-010-0005 - 0 X 0 X 0 mmObsolete	32
	Wear and Protection Strip (Grey)ST-PN-012-2295 - 2295 X 44 X 16 mmObsolete	1
	225x225mm UR10e Mounting plate, for Universal RobotsST-RB-001-0006 - 225 X 225 X 22 mmObsolete	1
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1

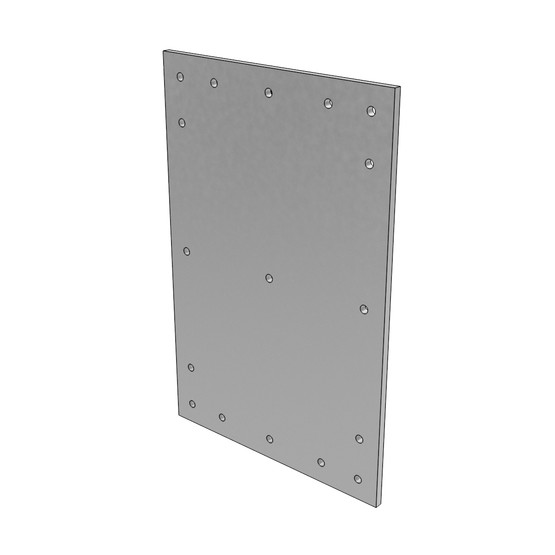

	270x405mm Machinable Blank Plate MachinableST-SP-008-0002 - 405 X 270 X 8 mmObsolete	2
	Premium Caster Wheel Mounting PlateST-SP-010-0001 - 100 X 90 X 11 mmShips next day	4
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.2566 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.2070 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.2070 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.7002 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.3791 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.0883 m²Obsolete	1
	Polycarbonate Panel, Clear 0.22'' [5.59mm]ST-PN-004-0001 - 0.3145 m²Obsolete	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 0.2977 m²Ships in 3 days	1
	Panel Holding StripST-PN-014-0001 - 14750 X 8 X 16 mmObsolete	1
	Aluminum Panel, 12 Ga. [2.05mm]ST-PN-015-0001 - 0.4252 m²Ships in 5 days	1
	Aluminum Panel, 12 Ga. [2.05mm]ST-PN-015-0001 - 0.4678 m²Ships in 5 days	1
	Aluminum Panel, 12 Ga. [2.05mm]ST-PN-015-0001 - 0.5103 m²Ships in 5 days	1
	Aluminum Panel, 12 Ga. [2.05mm]ST-PN-015-0001 - 0.4678 m²Ships in 5 days	1
	Aluminum Panel, 12 Ga. [2.05mm]ST-PN-015-0001 - 0.5103 m²Ships in 5 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	618
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	3
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	38
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	557
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	9
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	17
	M6 x 1.0 x 12mm, Low Profile Socket HeadHW-FN-005-0012 - 16 X 10 X 10 mmShips next day	3
