Automated Conveyor with Gating System

Community design

Automated Conveyor with Gating System. Includes all automation components and required software, from motion controller, to wiring & connector, to visual programming interface.

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-CV-27448
Weight	108.27 kg
Dimensions (L x W x H)	2322 x 968 x 1624 mm
Application	Material Handling
Assembly Time	07:53

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion ControllerCE-CL-005-0001 - 377 X 282 X 144 mmObsolete	1
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mm	6
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	M18 Through-Beam (NPN Receiver & Transmitter) Photo-Electric Sensor (Sn = 6000mm)CE-SN-006-0001 - 110 X 110 X 30 mmObsolete	3
	URCap for Linear Motion, V1.XCE-SW-001-0001 - 40 X 10 X 5 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	4
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips next day	4
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	1
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	21
	Grooved Rollers for Belt-driven Conveyors, 585mmMO-CV-001-0585__2 - 50 X 600 X 50 mm	25
	Mounting Bracket for Five Conveyor RollersMO-CV-002-0001 - 2 X 449 X 12 mm	10
	Motor Mounting Block for Belt-Driven ConveyorMO-CV-003-0001 - 90 X 97 X 89 mmObsolete	1
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips next day	2
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips next day	2
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	1
	Left End Stop for TB ActuatorMO-LM-015-0001 - 20 X 101 X 24 mmObsolete	1
	Right End Stop for TB ActuatorMO-LM-015-0002 - 20 X 101 X 24 mmObsolete	1

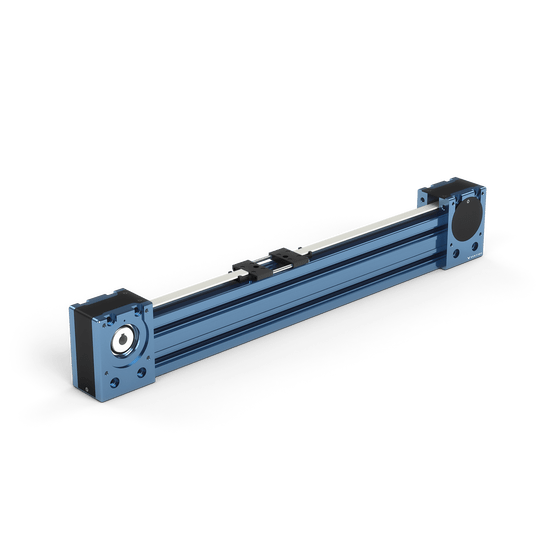

	Timing Belt Actuator (720mm)MO-LM-016-0720 - 900 X 67 X 120 mmObsolete	1
	261mm Roller-to-Roller O-Ring for Straight Conveyor SegmentsMO-PL-002-0257 - 5 X 82 X 82 mmObsolete	23
	311mm Motor-to-Roller O-Ring for Parallel Double-Pulley Driving SetupMO-PL-002-0306 - 5 X 101 X 101 mmShips next day	2
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	1
	65mm NEMA 34 Stepper MotorMO-SM-003-0001 - 133 X 86 X 86 mmObsolete	1
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips next day	2
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips next day	2
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	1
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	4
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	1
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	2
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	4
	45x90mm (2295mm) Aluminum ExtrusionST-EXT-002-2295 - 2295 X 45 X 90 mmShips next day	2
	22.5x22.5mm (225mm) Aluminum ExtrusionST-EXT-006-0225 - 225 X 22 X 22 mmShips next day	7
	22.5x22.5mm (1125mm) Aluminum ExtrusionST-EXT-006-1125 - 1125 X 22 X 22 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	4
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mm	6
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	10
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	189
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	21
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	11
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	17
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	146
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	7
	M8 x 35mm Screw, Partially ThreadedHW-FN-003-0035 - 35 X 13 X 40 mmShips next day	7
	90 Degree Inside Corner Bracket for 22.5 x 22.5 mm ExtrusionsHW-FN-006-0001__2 - 36 X 13 X 36 mmShips next day	16
