3m Medium Cobot Range Extender - Track Only

Community design

The medium cobot horizontal range extender is designed with a heavy-duty enclosed timing belt actuator for ingress protection and reduced pinch points. The net travel for this 7th axis is 3m. This kit includes the actuator, sensors, motor, cabling, controller, and E-Stop (robot not included).

Spec Attribute	Spec Value
Technical Specifications
Design Number	MF-EX-168263
Weight	68.81 kg
Dimensions (L x W x H)	403 x 3576 x 700 mm
Application	Manufacturing
Assembly Time	02:09

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - One DriveCE-CL-010-0001 - 392 X 293 X 150 mmShips next day	1
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	2

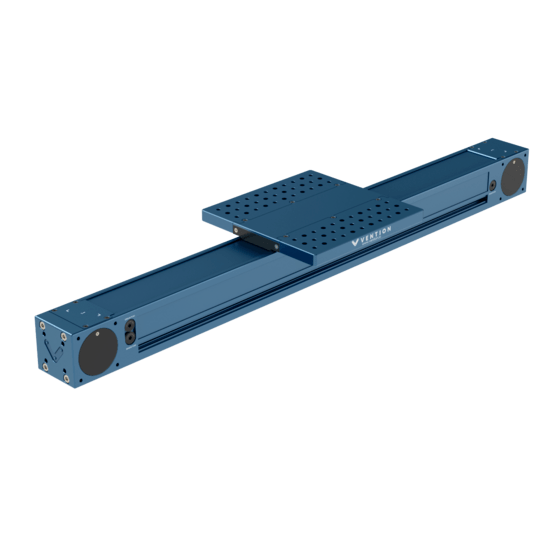

	Heavy Duty Enclosed Timing Belt Actuator, 3330mm LengthMO-LM-027-3330 - 3577 X 270 X 112 mmObsolete	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips next day	1
	225x225mm UR10e/UR16e Mounting plate, for Universal RobotsST-RB-001-0009 - 225 X 225 X 22 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	36
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	5
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	32
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	1
