3D Printer - Heavy-Duty - 1m x 1m x 300mm

Community design

Automated Scanning Cell with net travels of 1m x 1m x 300mm. All of the 3 axis use Ball Screw Actuators with Linear Guide Shafts for a precise movement. Includes a MachineMotion Pendant providing you with an easy way to program your unit. The bed surface is made of HDPE.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-30636
Weight	251.06 kg
Dimensions (L x W x H)	1777 x 1771 x 1074 mm
Application	Other Equipment
Assembly Time	23:56

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	6
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	6
	MachineMotion 1 PendantCE-TP-003-0001 - 320 X 200 X 73 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	8
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	4
	22.5x22.5mm Plastic End Cap, for ExtrusionsHW-EC-006-0001 - 10 X 22 X 22 mmShips next day	4
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	12
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	10
	71mm Wide Cable Drag Chain (1150mm)MO-DC-002-1125 - 1239 X 74 X 35 mmShips next day	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips next day	5
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmObsolete	4

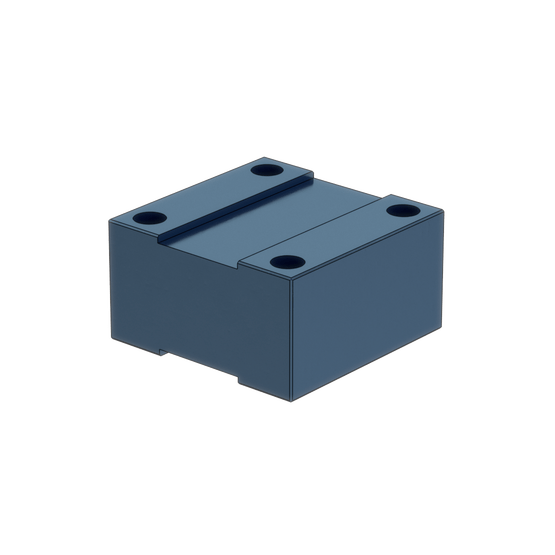

	Spacer for Dual Ball Screw Nut HousingMO-LM-002-0004 - 60 X 60 X 33 mmObsolete	1

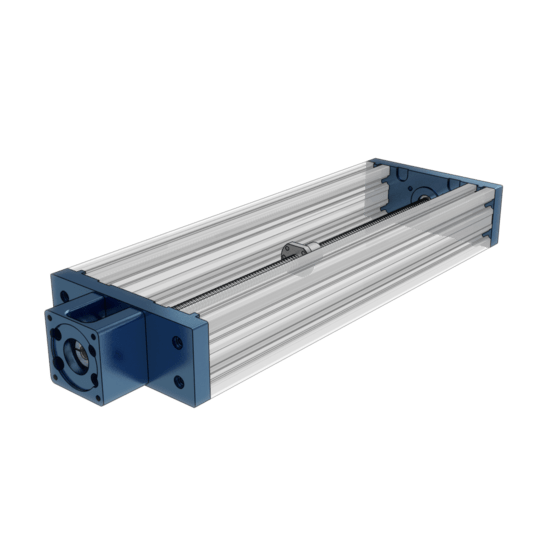

	Ball Screw Linear Drive, 10mm lead (585mm)MO-LM-003-0585 - 692 X 225 X 90 mmObsolete	1
	Ball Screw Linear Drive, 10mm lead (1530mm)MO-LM-003-1530 - 1637 X 225 X 90 mmObsolete	3
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips next day	16
	16mm Shaft for Linear Bearings (585mm)MO-LM-014-0585 - 585 X 31 X 33 mmObsolete	2
	16mm Shaft for Linear Bearings (1530mm)MO-LM-014-1530 - 1530 X 31 X 33 mmObsolete	8
	100mm NEMA 34 Stepper MotorMO-SM-002-0001 - 168 X 86 X 86 mmObsolete	3
	65mm NEMA 34 Stepper MotorMO-SM-003-0001 - 133 X 86 X 86 mmObsolete	1
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips in 7 days	2
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips in 7 days	1
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips in 7 days	2
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	4
	45x90mm (180mm) Aluminum ExtrusionST-EXT-002-0180 - 180 X 45 X 90 mmShips next day	6
	45x90mm (360mm) Aluminum ExtrusionST-EXT-002-0360 - 360 X 45 X 90 mmShips next day	2
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	2
	45x90mm (1035mm) Aluminum ExtrusionST-EXT-002-1035 - 1035 X 45 X 90 mmShips next day	1
	45x90mm (1305mm) Aluminum ExtrusionST-EXT-002-1305 - 1305 X 45 X 90 mmShips next day	1
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	4
	45x90mm (1440mm) Aluminum ExtrusionST-EXT-002-1440 - 1440 X 45 X 90 mmShips next day	2
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	11
	90x90mm (225mm) Aluminum ExtrusionST-EXT-005-0225 - 225 X 90 X 90 mmShips next day	4
	90x90mm (450mm) Aluminum ExtrusionST-EXT-005-0450 - 450 X 90 X 90 mmShips next day	4
	22.5x22.5mm (90mm) Aluminum ExtrusionST-EXT-006-0090 - 90 X 22 X 22 mmShips next day	3
	22.5x22.5mm (180mm) Aluminum ExtrusionST-EXT-006-0180 - 180 X 22 X 22 mmShips next day	1
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	10
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	4
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	8
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	4
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	8
	Tee Joint Aluminum Assembly PlateST-GP-001-0011 - 6 X 268 X 178 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	49
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1
	Acrylic Panel, Black 0.22'' [5.59mm]ST-PN-008-0003 - 2.1870 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	713
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	38
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	563
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	17
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	34
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	38
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 20 X 0 X 0 mmShips next day	17
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	112
	90 Degree Inside Corner Bracket for 22.5 x 22.5 mm ExtrusionsHW-FN-006-0001__2 - 36 X 13 X 36 mmShips next day	6
