3D Design Challenge: Versatile Product Cycling Test Bench (requested design)

Community design

For this design challenge, participants must use Vention’s cloud-based 3D CAD platform and its modular parts to design a versatile product cycling test bench, leveraging Vention linear actuators and precision rails powered by Thomson Industries.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-15608
Weight	170.56 kg
Dimensions (L x W x H)	1710 x 1689 x 1016 mm
Application	Other Equipment
Assembly Time	21:14

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion ControllerCE-CL-005-0002 - 377 X 282 X 144 mmObsolete	2
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	8
	Hollow Shaft Optical Rotary EncoderCE-SN-002-0001 - 48 X 48 X 34 mmObsolete	4
	M18 NPN Diffuse Photo-Electric Sensor (Sn = 300 mm)CE-SN-007-0001 - 110 X 110 X 30 mmObsolete	8
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	4
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	4
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	10
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	100
	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmObsolete	4

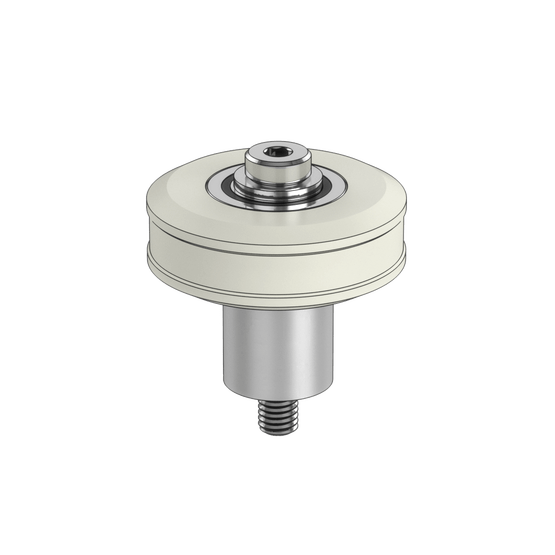

	Large Nylon Roller Wheel with Concentric BushingMO-LM-001-0018__2 - 0 X 0 X 0 mmObsolete	16
	Heavy-Duty 1530mm Belt-driven Linear ActuatorMO-LM-007-1530 - 1710 X 68 X 113 mmObsolete	4
	100mm NEMA 34 Stepper MotorMO-SM-002-0001 - 168 X 86 X 86 mmObsolete	4
	Blickle Swivel Leveling Caster Wheel with Fixed Pedal, 200kg CapacityMO-WL-003-0001 - 175 X 85 X 118 mmShips next day	4
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	2
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips next day	4
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips next day	2
	45x45mm (1350mm) Aluminum ExtrusionST-EXT-001-1350 - 1350 X 45 X 45 mmShips next day	2
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips next day	2
	45x90mm (1260mm) Aluminum ExtrusionST-EXT-002-1260 - 1260 X 45 X 90 mmShips next day	3
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	1
	45x90mm (1440mm) Aluminum ExtrusionST-EXT-002-1440 - 1440 X 45 X 90 mmShips next day	5
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	8
	45 Degree Joint Aluminum Assembly PlateST-GP-001-0012 - 6 X 110 X 153 mmShips next day	8
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	20
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	8
	2x4 Hole Aluminum Assembly Plate, with LocatorsST-HP-002-0002 - 6 X 178 X 88 mmShips next day	10
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	90
	Premium Caster Wheel Mounting PlateST-SP-010-0001 - 100 X 90 X 11 mmShips next day	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	676
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	30
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips in 3 weeks	623
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	17
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	17
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	17
	M3 0.5 x 3mm ScrewHW-FN-009-0003 - 0 X 0 X 3 mmShips next day	9
	M8 X1.25 Zinc Plated Thin Hex NutHW-FN-033-0002 - 13 X 13 X 4 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
