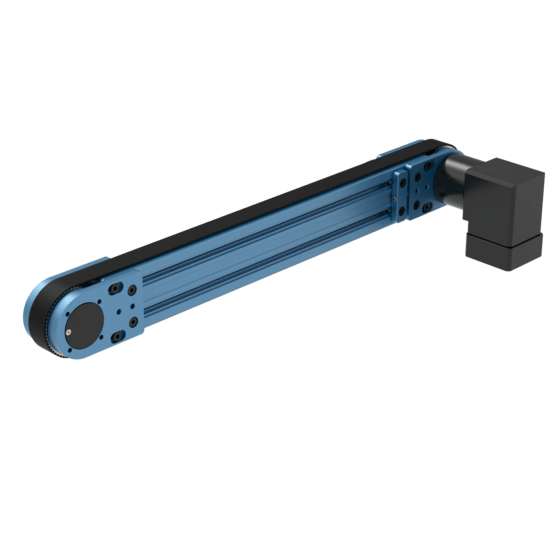

Timing Belt Conveyor, 855mm Length, Powered
$2,432.52 USD
Ships in 5 days
Vention's timing belt conveyor is ideal for metal pallet or tray handling for use in assembly or packaging operations. This powered segment comes in 5 different lengths and is equiped with a 3:1 reduction gearbox for improved driving force and easy connection to our various NEMA 34 flanged driving solutions. It can be paired to additional unpowered conveyor segments (MO-CV-014-XXXX) via a driveshaft coupler (MO-PT-005-0000) and round extrusion (ST-EXT-008-XXXX). For capacity, driving force, and other details, please consult the technical documentation.
Select dimension:
Length:
x 220.0 mm x 168.0 mm
QTY:
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | MO-CV-013-0855 |
| Weight | 11.00824 kg |
| Dimensions (L x W x H) | 1068.0 x 220.0 x 168.0 mm |
| Unit Price | $2,432.52 USD |
| Material | Steel, Aluminum |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Load Capacity | 736 N |
| Repeatability | ±1 mm |
| Max Linear Speed | 2000 mm/s |
| Max Acceleration | 2000 mm/s2 |
| Displacement Ratio | 100 mm/turn |
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | MO-CV-013-0855 |
| Weight | 11.00824 kg |
| Dimensions (L x W x H) | 1068.0 x 220.0 x 168.0 mm |
| Unit Price | $2,432.52 USD |
| Material | Steel, Aluminum |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Load Capacity | 736 N |
| Repeatability | ±1 mm |
| Max Linear Speed | 2000 mm/s |
| Max Acceleration | 2000 mm/s2 |
| Displacement Ratio | 100 mm/turn |
