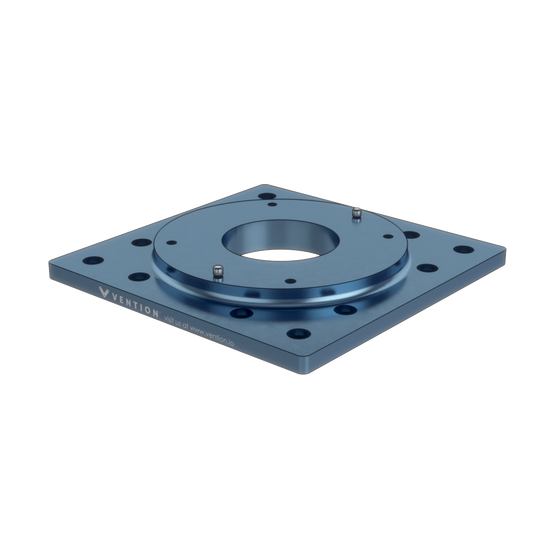

AUBO i5 Mounting Plate
$327.60 USD
Ships next day
Vention's AUBO i5 mounting plate enables fast and easy installation of a AUBO i5 robot to any custom assembly. Outer dimensions are 225mm x 225mm.
Quantity:
Technical Drawings
What's Included
General Specifications
| Spec Attribute | Spec Value |
|---|---|
| Part Number | ST-RB-003-0001 |
| Weight | 4.02 kg |
| Dimensions (L x W x H) | 225.0 x 225.0 x 22.5 mm |
| Unit Price | $327.60 USD |
| Standards | Dowel pins are made out of stainless steel |
| Associated Fasteners | 12 x HW-FN-002-0001 , 12 x HW-FN-003-0018 |
Technical Specifications
| Spec Attribute | Spec Value |
|---|---|
| Mounting | 4x M8, Pitch Circle Diameter = 148 mm |
Compatible Parts
45x45mm (585mm) Aluminum Extrusion
ST-EXT-001-0585
45x90mm (585mm) Aluminum Extrusion
ST-EXT-002-0585
