ST-HP-001-0003

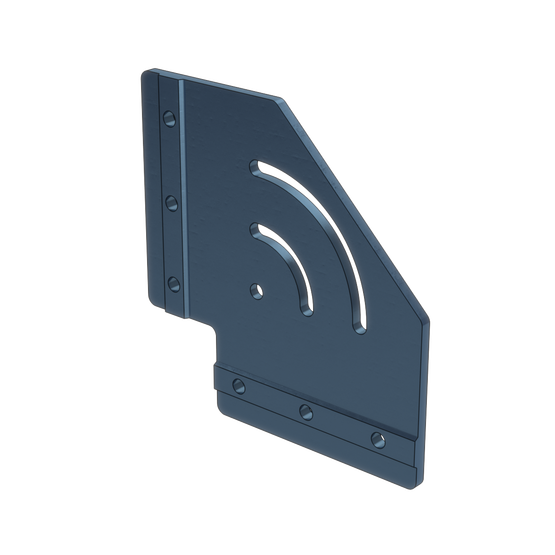

Angular Joint Aluminum Assembly Plate, with Locators
Vention's high-precision assembly plates and joints are designed to be combined with Vention's extrusions, creating high-performance assemblies. Plates have been engineered with self-positioning "V-shape" locators, enabling precision assembly that cannot typically be done with conventional extrusion system.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Designing with T-Slot Aluminum Extrusions |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | ST-HP-001-0003 |
| Unit Price | $64.23 USD |
| Weight | 0.394 kg |
| Dimensions (L x W x H) | 6 x 178 x 178 mm |
| Material | 6061-T6 Aluminum |
| Surface Finish | Dark Blue Anodization, 6um |
| Associated Fasteners | 9 x HW-FN-002-0001, 9 x HW-FN-003-0018 |
