ST-HP-002-0001

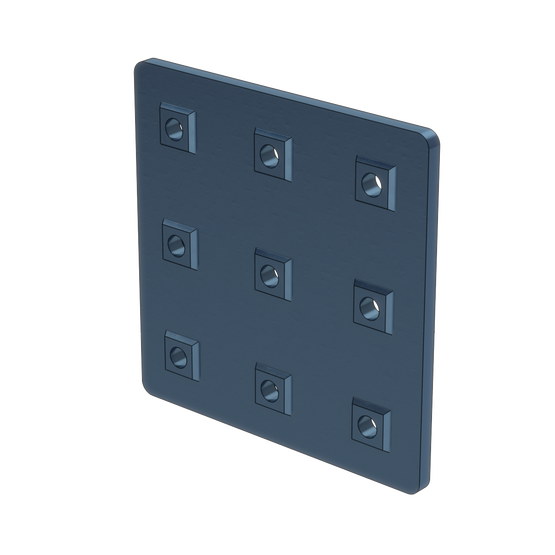

3x3 Hole Aluminum Assembly Plate, with Locators
Vention's high-precision assembly plates and joints are designed to be combined with Vention's extrusions, creating high-performance assemblies. Plates have been engineered with self-positioning "V-shape" locators, enabling precision assembly that cannot typically be done with conventional extrusion system.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Designing with T-Slot Aluminum Extrusions |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | ST-HP-002-0001 |
| Unit Price | $51.04 USD |
| Weight | 0.288 kg |
| Dimensions (L x W x H) | 6 x 133 x 133 mm |
| Material | 6061-T6 Aluminum |
| Surface Finish | Dark Blue Anodization, 6um |
| Associated Fasteners | 9 x HW-FN-003-0018, 9 x HW-FN-002-0001 |
$51.04 USD
Looking for more details?
This part requires custom specifications. Contact our sales team for tailored pricing and detailed information to ensure it fits your project perfectly.
