ST-GP-001-0001

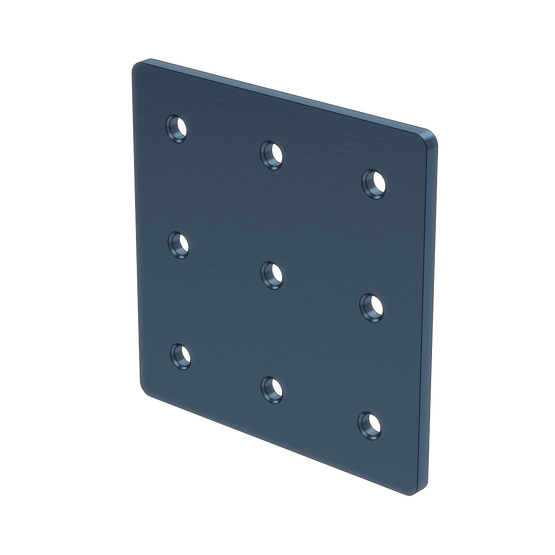

3x3 Hole Aluminum Assembly Plate
Vention’s general assembly plates are designed to be combined with Vention’s extrusions to maximize ease of assembly and lower costs. These plates are available in a variety of configurations, supporting all sorts of structural assemblies.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Designing with T-Slot Aluminum Extrusions |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | ST-GP-001-0001 |
| Unit Price | $37.70 USD |
| Weight | 0.284 kg |
| Dimensions (L x W x H) | 133 x 133 x 6 mm |
| Material | 6061-T6 |
| Surface Finish | Dark blue anodized, 6um |
| Associated Fasteners | 9 x HW-FN-002-0001, 9 x HW-FN-003-0018 |
| Light Duty Fasteners | 9 x HW-FN-003-0012, 9 x HW-FN-002-0001 |
