225x225mm UR10e Mounting plate, for Universal Robots

Name: 225x225mm UR10e Mounting plate, for Universal Robots
Brand: Vention
SKU: ST-RB-001-0006
Price: 309.28 USD
Availability: InStock

$309.28 USD

Obsolete

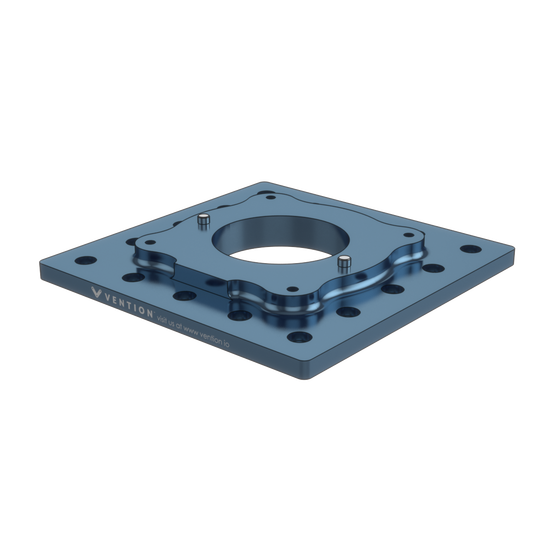

Vention's UR10 mounting plate enables fast and easy installation of a UR10 robot to any custom assembly. Outer dimensions are 225mm x 225mm. Certified by Universal Robots.

Quantity:

Start a new design

Use desktop to design

Technical Drawings

2D Drawing

What's Included

16 x M8 Drop-in Spring Loaded T-Nut
16 x M8 x 18mm Screw

General Specifications

Spec Attribute	Spec Value
Part Number	ST-RB-001-0006
Weight	1.726 kg
Dimensions (L x W x H)	225.0 x 225.0 x 22.5 mm
Unit Price	$309.28 USD
Material	6061-T6
Surface finish	Dark Blue Anodization, 6um
Standards	Dowel pins are made out of stainless steel
Associated Fasteners	16 x HW-FN-002-0001 , 16 x HW-FN-003-0018
Light-Duty Fasteners	16 x HW-FN-002-0001 , 16 x HW-FN-003-0012
