MO-PT-005-0000

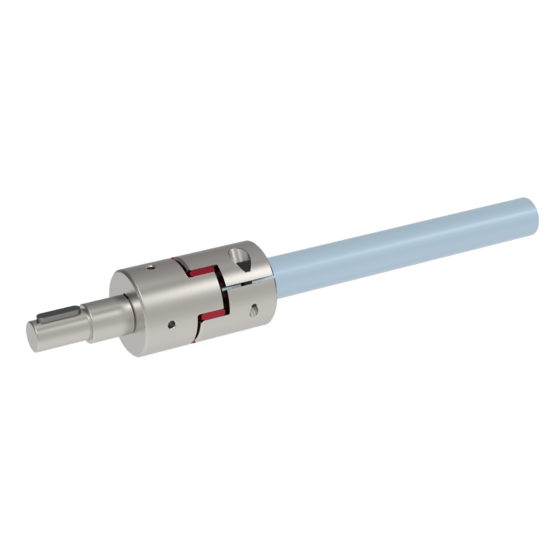

14mm to Round Extrusion Driveshaft Coupler
This driveshaft coupler permits power transmission between a powered timing belt segment (MO-CV-013-XXXX) and an unpowered segment (MO-CV-014-XXXX) via a coupler with a keyed 14mm shaft and opposing 20mm hole for round extrusion (ST-EXT-008-XXXX). Sold as a single coupler.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Timing Belt Conveyor V2 |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | MO-PT-005-0000 |
| Unit Price | $168.93 USD |
| Weight | 0.304 kg |
| Dimensions (L x W x H) | 111 x 40 x 40 mm |
| Material | Aluminum, Plastic |
| Spec Attribute | Spec Value |
|---|---|
| Technical Specifications | |
| Max Torque | 15 Nm |
