Double Sided Bin Rack

Vention official

Bin organization rack designed with t-slot aluminum extrusions and DIN rails for bin mounting. Adjust this modular set of hardware to cover your specific needs.

Spec Attribute	Spec Value
Technical Specifications
Numéro de conception	AS-SR-310826
Poids	44.70 kg
Dimensions (L x l x H)	1260 x 863 x 1581 mm
Application	Assembly
Temps d’assemblage	05:25

Spec Attribute	Spec Value
Documentation
Instructions d’assemblage
Calculateur de ROI
Modèle 3D

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	4
	Extrusion Tapping KitHW-TL-001-0000 - 320 X 225 X 35 mmShips next day	1
	45x45mm (270mm) Light Aluminum ExtrusionST-EXT-101-0270 - 270 X 45 X 45 mmShips next day	4
	45x45mm (855mm) Light Aluminum ExtrusionST-EXT-101-0855 - 855 X 45 X 45 mmShips next day	2
	45x45mm (1170mm) Light Aluminum ExtrusionST-EXT-101-1170 - 1170 X 45 X 45 mmShips next day	10
	45x45mm (1530mm) Light Aluminum ExtrusionST-EXT-101-1530 - 1530 X 45 X 45 mmShips next day	2
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	24
	45 Degree Inline Connector with LocatorsST-HP-003-0003__2 - 45 X 45 X 5 mmShips next day	8
	DIN Rail 35x7.5mm (225mm)ST-SP-014-0225 - 225 X 35 X 7 mmShips next day	5
	DIN Rail 35x7.5mm (900mm)ST-SP-014-0900 - 900 X 35 X 7 mmShips next day	5

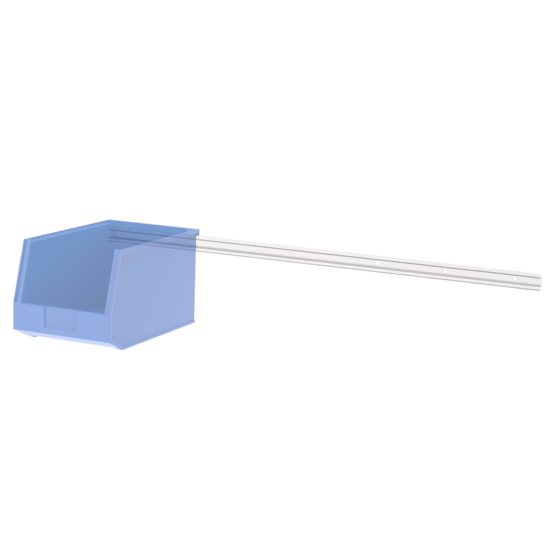

	Mounting Rail for Hangable Plastic Bin Boxes, 1215mm LongST-SP-017-1215 - 1213 X 15 X 43 mmShips in 4 weeks	10
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	186
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	42
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	73
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	73
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmShips next day	42
